Mototile Interlocking Floor Tiles - FAQ's

Here are list of frequently asked questions about the MotoLock and MotoMat products from Industrial Floor Tiles. We got your interlocking tile answers or installations question answered here. If you don't see what you are after or have question then there are three ways to contact us: Telephone: 01329 623115 | email sales@industrial-floor-tiles.co.uk | Enquiry Form.


Below you'll find answers to the questions we get asked the most about

Question: What's the range of tiles available?

Answer: At present Mototile offers two PVC tile ranges - MotoLock & MotoMat.

MotoLock Interlocking Tile
MotoLock - Heavy Duty, hard wearing PVC tiles suitable for forklift operations, workshops, retail flooring, exhibitions and similar indoor uses. Coin top and Diamond plate patterns. Dimensions 495 x 495 x 7mm. Materials: Virgin PVC in many colours or recycled PVC in black or grey shades.



MotoMat Black Interlocking Tile
MotoMat For maximum economy and suitable for outdoor use. Cointop and Diamond plate patterns. Dimensions: 470 x 470 x 12mm. Materials: recycled PVC materials black tiles. Can be used outdoors.



MotoVent Interlocking Tile
MotoVent Tiles -Superior strength tiles designed with self draining channels allowing debris and dirt to drain through. Suitable for indoor and outdoor use. Dimensions 400 x 400 x 18mm. Materials: New PVC material, in various colours.



Question: Can the tiles be custom coloured eg. to match my car?

Answer: Colour matching is achievable, subject to a minimum quantity order - please call for more information and prices.

Question: How do you quote / measure tile dimensions?

Answer: We quote MotoLock and MotoMat tile requirements based on an inside edge to outside edge measurement. The MotoVent tile requirements are based on the inside to inside edge measurement. We have found that this improves estimating accuracy. Other dimensions, which take account of 1) all tabs and 2) no tabs, are also shown below.

MotoMat Anti-Fatigue Recycled Tile Dimension Guide

Anti-Fatigue interlocking Tiles Black Colours

MotoLock New & Recycled Tile Dimension Guide

Anti-Fatigue interlocking Tiles Black Colours

MotoVent New Tile Dimension Guide

MotoVent interlocking Tiles Colours

Tile Type

Outside to Outside (mm)

Inside to Inside (mm)

Inside to Outside (mm)

MotoLock

510 x 510

480 x 480

495 x 495

MotoMat

495 x 495

445 x 445

470 x 470


Tile Type

Inside to Outside (mm)

Inside to Inside (mm)

MotoVent

404 x 404

400 x 400

Question: How much?

Answer: That depends on the choice of tile and colour:

  • The MotoLock range tiles vary from £6.39 (Recycled PVC) to £8.75 (Virgin Premium colours). MotoMat (Recycled PVC) tiles are the lowest cost £3.99 each, approx. £15.96 per square metre. The MotoVent tiles are priced at £4.25, excluding vat.
  • Tiling a typical 3m x 5m garage would cost (excludes VAT and express delivery charge):
  • MotoMat range - From under £329.
  • MotoVent all colour range - From under £442.
  • MotoLock recycled range - From under £493.
  • MotoLock virgin PVC classic colour range - From under £556.
  • There is a Tile Cost Comparison / Calculator here.
  • The latest prices can viewed at the Mototile Shop.

Question: Where are your tiles made?

Answer: All of our tiles, ramps and skirting are manufactured in the UK.

Question: Where can I see the tiles?

We have a showroom at Unit 15 the I.O centre PO15 5RU and you can see us at popular Auto Sport venues throughout the year. Our full address details are shown on the contact page

Question: Is there a quick overview of Mototile?

Go to Product Information in the main menu to review the following products: MotoLock, MotoMat, Skirting Boards and Trim Inserts. There are 3 easy tools to use when making your Mototile selection. First use our MotoLock Floor Designer or MotoVent Floor Designer to plan your colour scheme or to create your preferred pattern design. For flooring ideas go to the Customer Garage Gallery. Then use our Online Calculator tool to get an estimated quote and how many interlocking tiles you will require for your flooring project. Once you have this information make your selection from the Mototile shop and add your products to the basket. Once you are happy proceed to Checkout Securely and follow on screen instruction (delivery address information and card details etc.)

Question: What is the availability/ lead time for delivery?

For most areas, and for in-stock items only, orders received before 1pm (Monday to Friday) are despatched for delivery on the following working day (Monday to Friday). Some items - in particular MotoLock Edging/Ramps - which can take 1 - 2 days to make and sent out for delivery.

Once your order is received, we will phone to confirm all details, including any prefered delivery dates. If an item is out of stock or needs to be made or machined we will inform you and confirm an exact delivery date. Generally, orders for flooring are heavy and need to be shipped on a pallet: you must be there to receive, sign for and unload the pallet.

Delivery prices quoted are for UK Mainland and IOW addresses. Please contact us for a quote on delivery options if any of the postal regions below applies to the delivery address: Northern Ireland (BT), Isle of Man (IM), Guernsey (GY), Jersey (JE), Scottish Highlands and Orkney Isles (AB, FK, KW, PA, ML, EH, KA, G, KY, PH, DD, IV), Outer Hebrides and the Shetland Isles (HS, ZE).

Question: Can the floor be used straight away?

Yes, unless curing time for adhesive is required (eg. for securing tile ramps), the entire floor can be used immediately it is laid.

Question: Can I use jacks and stands on the tiles?

MotoLock heavy duty tiles will take spot loads, we would always suggest using an additional tile between the jack and your new floor. A more widely spread load is safer to work with too.

Question: What type of floors can Mototiles be laid on?

The tiles can be laid onto any hard, level surface including concrete and wooden floors, ceramic tiled floors, linoleum and vinyl. However, they are not suitable for fitting directly over carpet or carpet tiles.

Question: What do I need to do preparation wise?

Usually very little. This varies somewhat with the tile type but none requires a perfect underfloor. View the installation guides for the MotoLock, MotoMat and MotoVent floor tiles.

The preparation basics are to remove any ridges or high points in the floor and fill any substantial cracks or holes with a self-leveling mortar. For tile edge/ramps: When bonding tile ramps to a concrete floor observe the adhesive manufactures recommendations for surface preparation.

For tile skirting: Ensure that you can get a good flush fit to the wall and that the bottom of the wall surrounding the tiles is clear of dust and debris.

Question: Do I need special tools to install the Mototile system?

No. Generally no specialist tools are required, although a non marking rubber mallet makes light work of fixing tiles together. You can buy one from us. Many installations require only a sharp knife for cutting the tiles, a tape measure and a straight edge.

For curved or intricate shapes you can use an electric jig saw or a coping saw. The ramp and skirting products require a hand saw or electric jigsaw to achieve the best finish.

To finish the floor edges around the perimeter cut the lugs off to leave a straight edge and allow a 5mm gap for expansion, fit where required the appropriate ramp to the entrance.

There is an installation guide for the MotoLock, MotoMat and MotoVent tiles.

Question: Can the tiles be cut easily?

Tiles can be cut with the sort of hand or power tools you would normally use for cutting or shaping timber.

The image below shows a cutout made using a jigsaw.

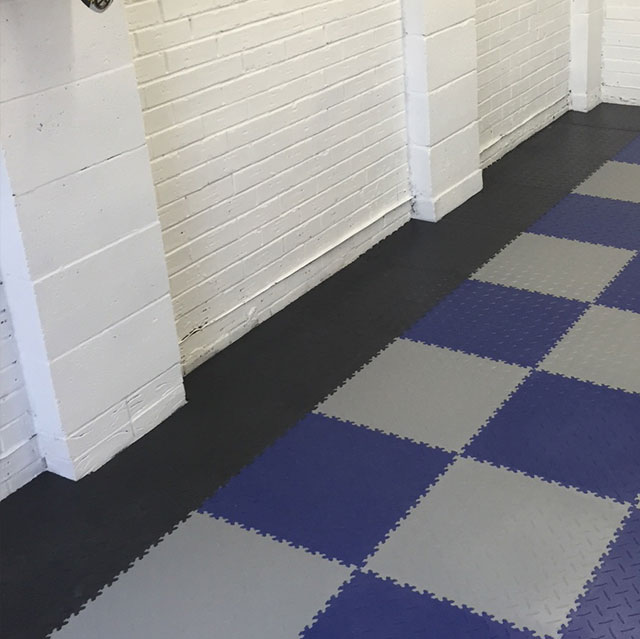

Tile cutout made using a jigsaw.

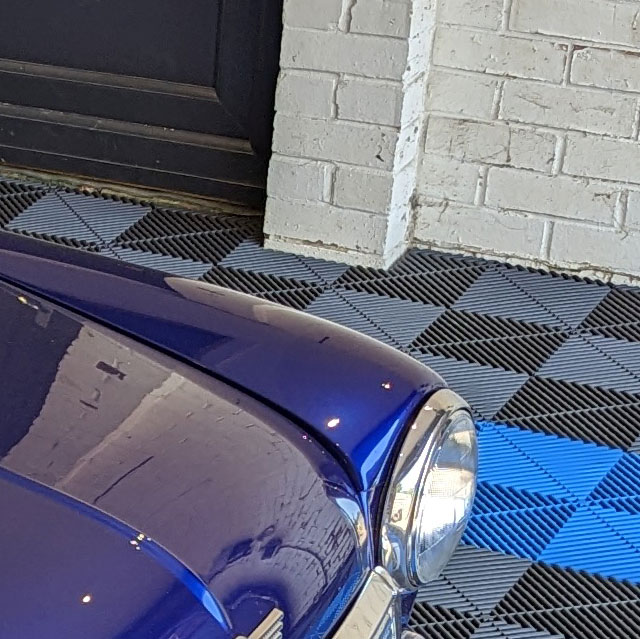

MotoVent Tile cutout made using a jigsaw.

Question: How do I install the Mototile snap fast flooring system?

Like a very easy jigsaw. Or imagine laying carpet tiles that snap together and which you firm down with a rubber mallet.

Here is an installation guide for the MotoLock, MotoMat and MotoVent tiles.

Ensure a 5mm working gap is left around the perimeter of the garage / room and any fixtures so that tiles to allow for expansion in warmer weather. The gap can be hidden by using any other skirting and we would suggest one at least 10mm thick and you can then sit it just above the tile and thus hiding the expansion gap. We strongly advise the use of tile ramps (MotoLock Ramps) or (MotoMat Ramps) or (MotoVent Ramps) on all edges where vehicles (or anything wheeled) move on and off the floor or where there is a risk of tripping. Go to the video link to view a selection of how to install guides, picture slide shows, time lapse video's and more.

Question: How do I clean the tiles?

We do recommend the Floor Cleaner R1000 by Dr. Schutz. It cleans, protects and adds safety to your flooring in one step. Enhances the anti-slip properties, creating a water-soluble protective film. For more information and purchase options on this Floor Cleaner R1000 product click or go to: https://drschutz.co.uk/retail/floor-cleaner-r1000/

Alternatively you can sweep or vacuum the tiles then sponge mop them with a washing-up liquid solution: use the makers recommended hand-wash concentration level. Don't use harsh detergents, polishes or scouring powders. Never use abrasives.

Question: Is the floor slippery?

The floor has a nice sheen when clean but it is designed (and tested) to be non-slip.

Question: Does water get trapped under the tiles?

The interlock stops most water penetration. Any water that does gets under the tile will evaporate as the tile is has an air flow design on the underside that 'breathes'.

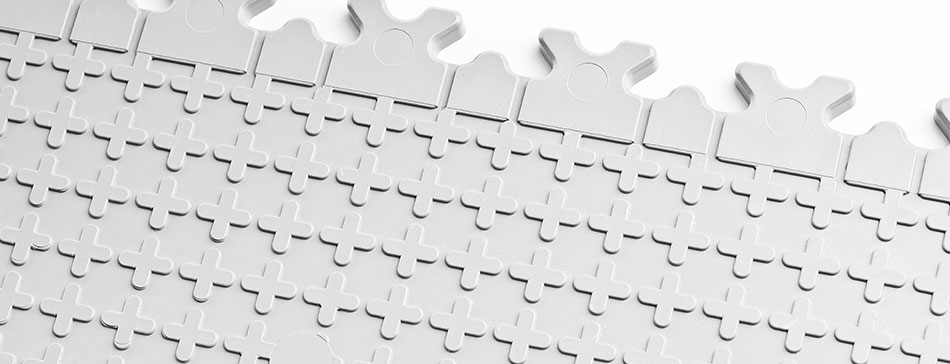

picture showing you what the MotoLock tile looks like underneath

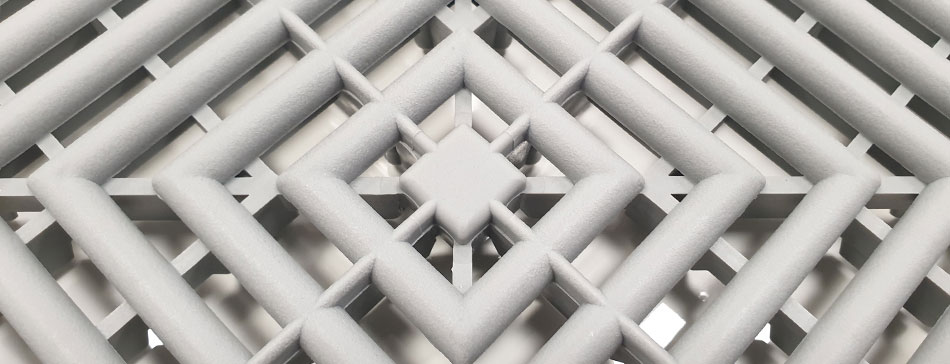

The MotoVent are designed with self draining channels allowing debris and dirt to drain through.

picture showing you what the MotoLock tile looks like underneath

Question: Is the floor flammable?

The floor is classed as difficult-to-ignite due to its chemical composition.

The MotoVent has a commercial-grade heat resistance that tolerates temperatures between -22°F to +248°F, they also boast a fire rating of HB (Horizontal Burn), ensuring enhanced safety.

Question: Do the tiles insulate?

The tiles can act as thermal and acoustic insulation.

Question: What about environmental impact?

MotoLock and MotoMat interlocking tiles are 100% recyclable (we sell two ranges of tiles manufactured from recycled PVC materials) and are a totally reusable product: take them with you if you move. Also, if you damage a tile or two, you can replace them and not the whole floor, thus reducing waste.

Question: Can I buy just one tile or a few tiles eg. to change a colour scheme?

Yes. We sell all tiles, ramps and skirting individually and in packs.

Question: Do you deliver outside the UK?

For orders and deliveries outside the UK please contact us.

Question: Why are your tiles cheaper than some others, have you cut corners?

Tiles are manufactured from high grade PVC materials to a full specification. Our prices reflect a focus on business essentials and careful cost control.

Question: Is there a brochure I can download?

Click to download a PDF brochure covering the full Mototile range.

Question: What about customer testimonials?

Go to our Garage Makeover Page to review any Mototile commetns or check out our facebook page or any of the products seen on the Mototile Shop.
